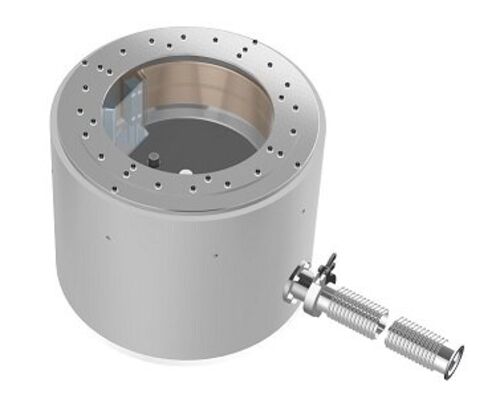

COPRA IS400-EGIRPE Built In Plasma Source

OverviewCOPRA IS201-G(I)R(PE)IS201-EG(I)R(PE)IS301-EGIRPEIS400-EGIRPEIS502-EGIRPEIS1100x250-GRPEIS-custom design

The COPRA IS400-EGIRPE Built In Plasma Source have been designed for Plasma ion-assisted deposition (PIAD) in PVD applications at low temperatures
in order to achieve:

-higher atomic or molecular packing density in the thin-film layers (increasing index of refraction),
-minimizations of wavelength shift,
-higher adhesion and lowest absorption levels.

Those performance requirements are in particularly crucial for the production of

Smart devices: AR coatings/Hard coatings,
LED: DBR reflector layer coatings,

Lightning: Dichroic color filters/Beam splitters/Reflector coatings
Medical: Filter and mirror technologies for controlled heat and lightning conditions
Communication technology: AR coatings/Band pass filters
Precision optics: Microlithography(EUV/DUV), Laser optics and Mirror coatings, Camera lens coatings
Night vision and distance control, Microscope and telescopes.


The COPRA IS400-EGIRPE Built In Plasma Source cover all typical energy ranges required to assist the typically used evaporating materials for optics.
They are used for calotte or dome sizes up to 1500 mm Easy to install and renowned to be maintenance poor they contribute to optimize your coating costs. No arcing and spikes on substrates and/or films, no filament and no electron emission grid needed! Variable RF-power independent ion energy settings allow to perform your film with the exact energy values you will need preventing surface damages and stress build-up.



Main Applications

COPRA IS400-EGIRPE
Ø 250 mm
neutral Plasma Beam (no filament)
Integrated Remote Match
up tp 1500 mm calotte/dome size
-
DN40 KF
13,56 MHz
5 kW
Yes
1x10-4 to 1x10-2 mbar
HN
Profibus/Serial
2x flex tube 8 mm
>2L/min
Swagelok 4 mm
AL
40 kg
